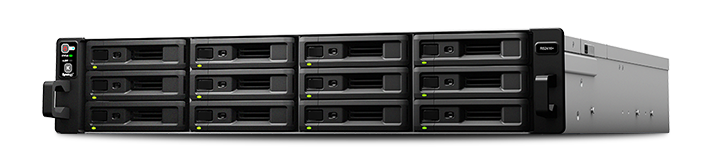

RackStation RS2416+

Details

Hardware Specifications
CPU
CPU Model	Intel Atom C2538
CPU Architecture	64-bit
CPU Frequency	Quad Core 2.4 GHz
Floating Point	+
Hardware Encryption Engine (AES-NI)	+
Memory
System Memory	2 GB DDR3
Memory Module Pre-installed	2 GB x 1
Total Memory Slots	2
Memory Expandable up to	6 GB (2 GB + 4 GB)
Storage
Drive Bay(s)	12
Maximum Drive Bays with Expansion Unit	24
Compatible Drive Type (See all supported drives)	· 3.5″ SATA III / SATA II HDD · 2.5″ SATA III / SATA II HDD · 2.5″ SATA III / SATA II SSD
Maximum Internal Raw Capacity	96 TB (8 TB HDD x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units	192 TB (8 TB HDD x 24) (Capacity may vary by RAID types)
Maximum Single Volume Size	108 TB
Hot Swappable Drive	+
External Ports
USB 2.0 Port	2
USB 3.0 Port	2
Expansion Port	1
Appearance
Size (Height x Width x Depth)	88 mm x 430 mm x 692 mm
Weight	12.56 kg 13.24 kg (for RP model)
